QUALITY CONTROL INSPECTION SYSTEM

  • Tests water-heater safety thermostats
  • Realistic simulation of field environment

 PROCESS CONTROL AND MEASUREMENT

  • Transport mechanism moves thermostats to various temperature controlled locations.
  • Continuously monitored process status
  • PC controlled transport and  measurements
  • Operator is shielded from 200 - 210 degree F hot water insertion baths
  • LabVIEW test/process language

BUILT-IN MAINTENANCE

  • Self-test and calibration
  • Automated transducer calibration process
  • Error detection and handling

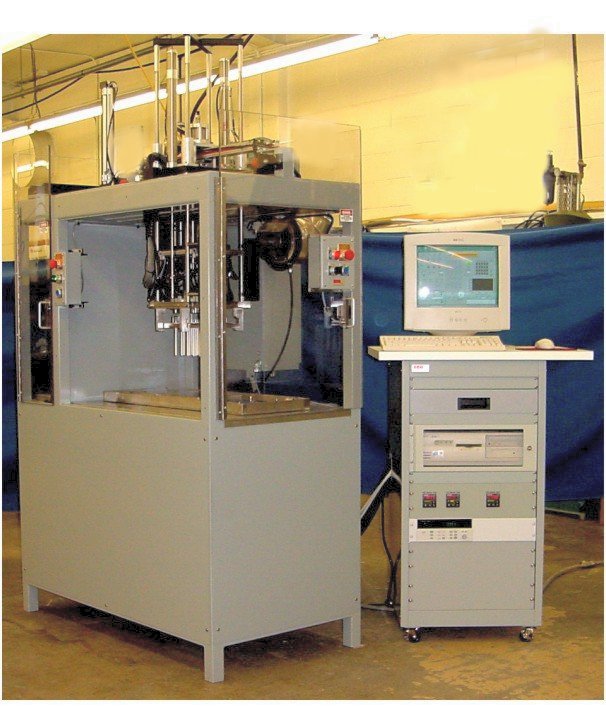

Thermostat Temperature Test System

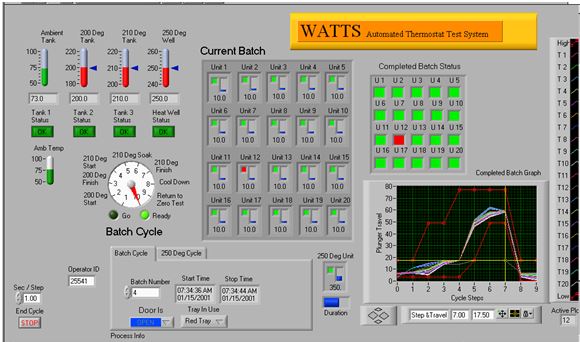

Thermostate Tester Screen
User Interface Screen
